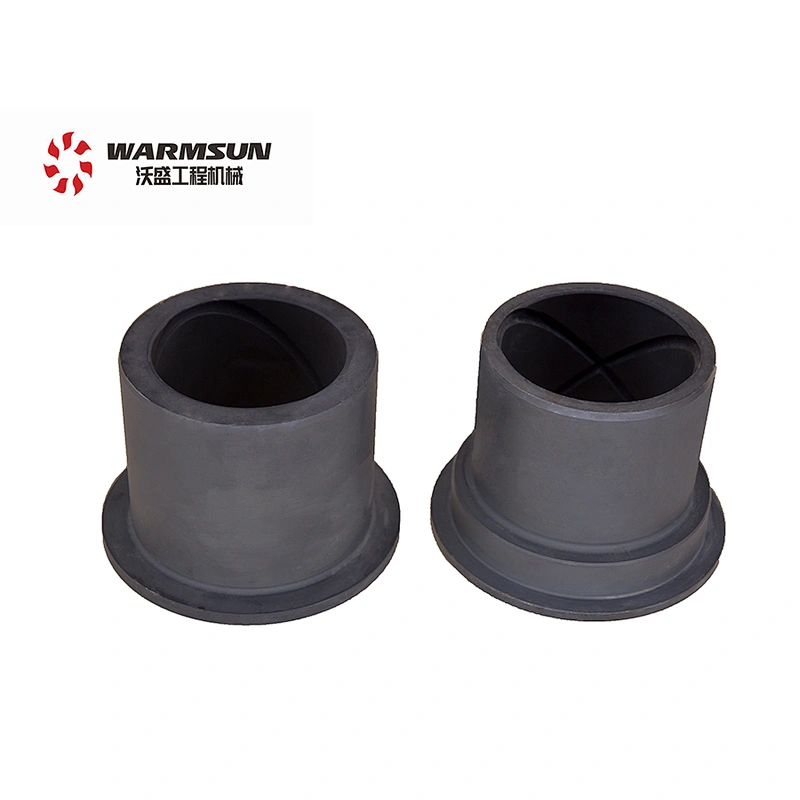

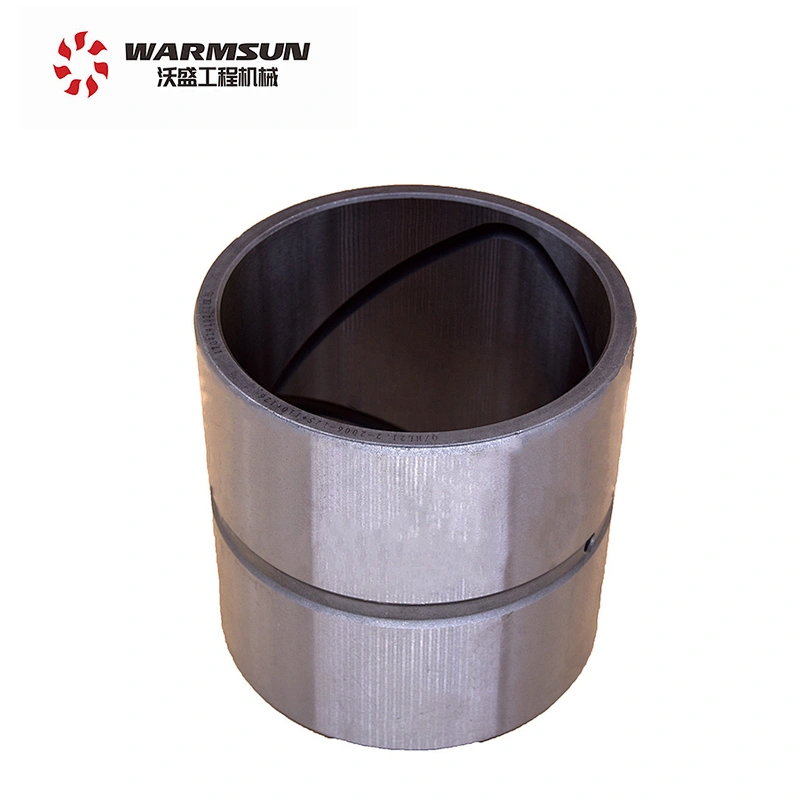

4.155kg 90×120×98.5SY300.3-12F Excavator Bucket Bushing Of Sany SY235 Excavators
Product Details
4.155kg
150×105×105mm
light black
shaped like a cylindrical hollow metal tube
mounted over the shaft pin
apt protection from corrosion, erosion
Advantages
special anti-fake marks
manufacturer with decades of experience
meet all kinds of orders from customers
no burrs and no paints
professional quality inspection team and advanced production technology
no inferiors
Product Parameters
| Product Name | 4.155kg 90×120×98.5SY300.3-12F Excavator Bucket Bushing Of Sany SY235 Excavators | Brand | Wearproof |
| Part Number | 11744971 | Model Number | 90×120×98.5SY300.3-12F |
| Product Type | 90×120×98.5SY300.3-12F bucket bushing | Part Material | steel |
| Part Size | 150×105×105mm | Applicable Industries | Sany SY235 Excavators |
| Part Color | black | Place of Origin | China |
| Supply Ability | 120000 pieces per year | Warranty | 4 seasons |
| Part Features | slippery, durable | Samples | free |
| MOQ | 1 piece | Part Weight | 4.155kg |
Product Operating Principe
There is a certain gap between the pin shaft and the shaft sleeve having a traditional relative motion. The clearance fit is adopted between the pin shaft and the shaft sleeve.
It is difficult to form a stable oil film when the clearance is too small. Direct contact between the two parts leads to greater friction, even machine locking.
When the clearance is too large, it will create a large impact load. These situations will reduce the service life of these parts.
According to the operating principe, a reasonable design of the clearance has a great impact on the use of excavator working.
With thousands of tests, we gain a better design of pin bushings. New bushing tough enough to take abrasion will suffice. So, we gain a longer lifespan bushings.
Packing and Shipping
For bushings, a plastic bubble film and a cardboard box are provided to pack goods, which is easy to transport and helps to keep the products intact during transportation.
For leadtime, 10000 pieces are produced, which is a large stocks.
For shipping time, every goods will be sent to customers in time. Although shipping time is up to express company, we know an approximate time from different express company, and we will count it into the delivery time. So, our customers could get a precise deadline.
Services
goods can be returned or replaced without any reason within 7 days
goods can be replaced within 15 days
warranty is one year
customers can get samples
FAQ
Q1: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. Warmsun is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q2: Hong long is your delivery time?
A: It depends on the quantity. For a big order, the time is generally 10-25 days after order. For a small order, customers can get goods at once.
Q3: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed. For some goods that are inconvenient to transport, the express costs will be burdened by the customer
Q4: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
